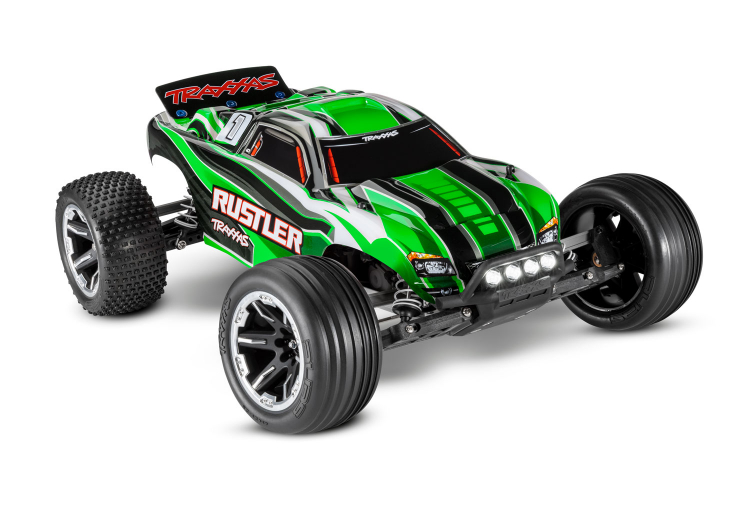

QUICK FEATURES ON Rustler (#37054-61):

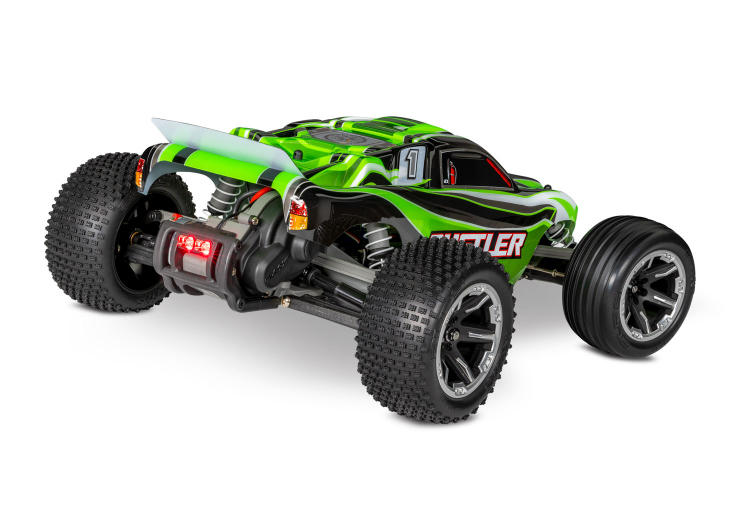

NEW Factory-installed front and rear LED lighting
NEW ProGraphix® paint
NEW Two-tone wheels
Includes battery and charger
- 4-amp 12V DC Peak Detecting Fast Charger
- Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD®
TQ 2.4GHz radio system
Waterproof electronics for all-weather driving excitement
56+kph* top speed!
Titan® 12-turn 550 modified motor
XL-5 waterproof electronic speed control
Traxxas' exclusive patented Training Mode
Brushless-Ready metal gear Magnum 272™ transmission
100% Fully assembled and Ready-To-Race®
RUSTLER (#37054-61) SPECS:
Length: 445 mm
Front Track: 311 mm
Rear Track: 311 mm
Weight: 1.69 kg
Height (overall): 178 mm
Wheelbase: 289 mm
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires (pre-glued): Alias® Ribbed 2.8"
Rear Tires (pre-glued): Alias® Step-Pin 2.8"
Front Wheels: 2.8" Black and Chrome 6-Spoke
Rear Wheels: 2.8" Black and Chrome 6-Spoke
Electronic Speed Control: XL-5™
Motor (electric): Titan® 12T 550 (12-turn 550)
Steering Servo: #2056 High Torque Waterproof
Transmitter: TQ 2.4GHz Radio
Receiver: #6519 TQ 3-Channel Micro
Gear Ratio (internal): 2.72 (final drive: 10.17)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Bellcrank
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Top-Speed: 56+kph**
Skill Level: 1
*Battery Tray Dimensions: 166 x 47.5 x 28 mm
Included Charger: Traxxas 4-amp 12V DC Peak Detecting Fast Charger
Included Batteries: Traxxas Power Cell 3000 mAh, 8.4V, NiMH Battery with iD®
Required Batteries: 4 "AA" (transmitter)
*Battery expansion kit is available (#3725X)
**With 7-cell battery and included optional 28-tooth pinion gear
XL-5 (WATERPROOF) ESC SPECIFICATIONS:
Input voltage: 4-7 Cells NiMH (4.8 to 8.4 Volts DC)
Case Size: 31 x 55 x 15.5 mm
Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge
Input Harness Wire: 26 Gauge
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal shutdown
Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode*: 50% FWD, 100% brakes, 50% REV
*Patented
**Properly Geared
