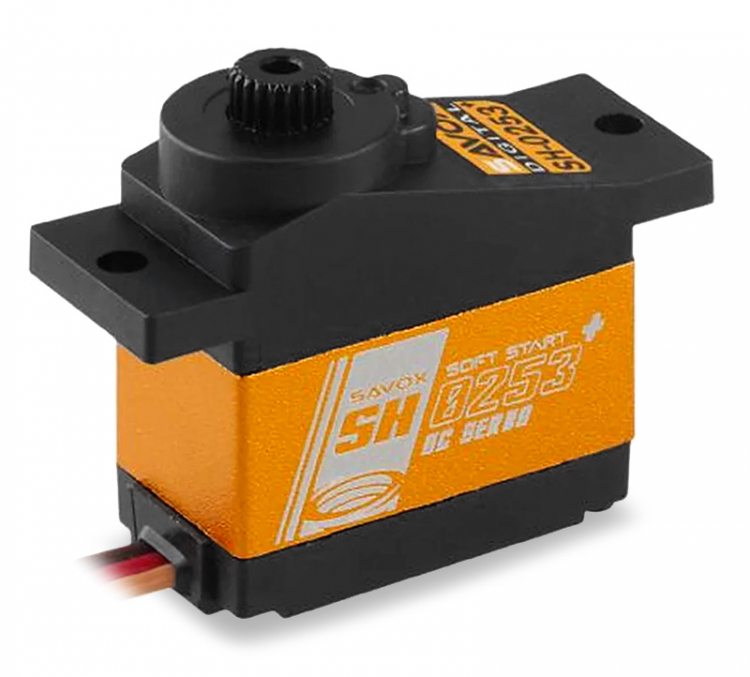

Savöx SH-0253 Plus Servo 2,2Kg 0,09s Alu Micro

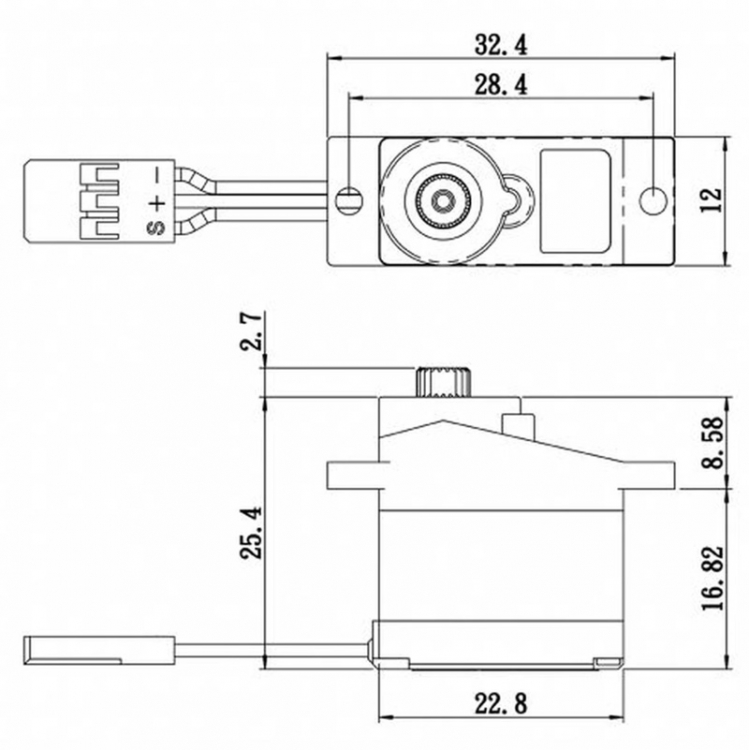

Savöx SH0253PLUS - Micro Digital Servo with Soft Start, 0.09s/2.2kg/cm @6V The Savox SH-0253 Plus micro, digital servo has a nice balance of torque and speed in addition to using a combination of industrial plastic and metal gears for added durabilty and smoothness. Features: Soft Start Sanwa SSR compatibility Aluminum middle case allows for cooler operating temperatures Industrial plastic and metal gear train ensures durability and longevity Ideal for small planes, and 450 size helicopters Specifications: Torque @ 4.8v - 1.8kg/cm Torque @ 6v - 2.2kg/cm Speed @ 4.8v - 0.13 sec/60 deg Speed @ 6v - 0.09 sec/60 deg Dimensions: L22.8 x W12 x H25.4mm Weight: 13.6g Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 150mA @4.8V, 180mA @6.0V Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 250 ± 5mm Output Gear Spline: 21 Tooth Bearings: 1BB Operating Travel: 90° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 700 → 2300 µ second Maximum Travel: Appx 150° (700 → 2300 µ second) Refresh Rate: 240 Hz Motor Type: Brushed
