Tuotenumero: FS046
Product information "Flysky i6X 6 channel Radio Set"

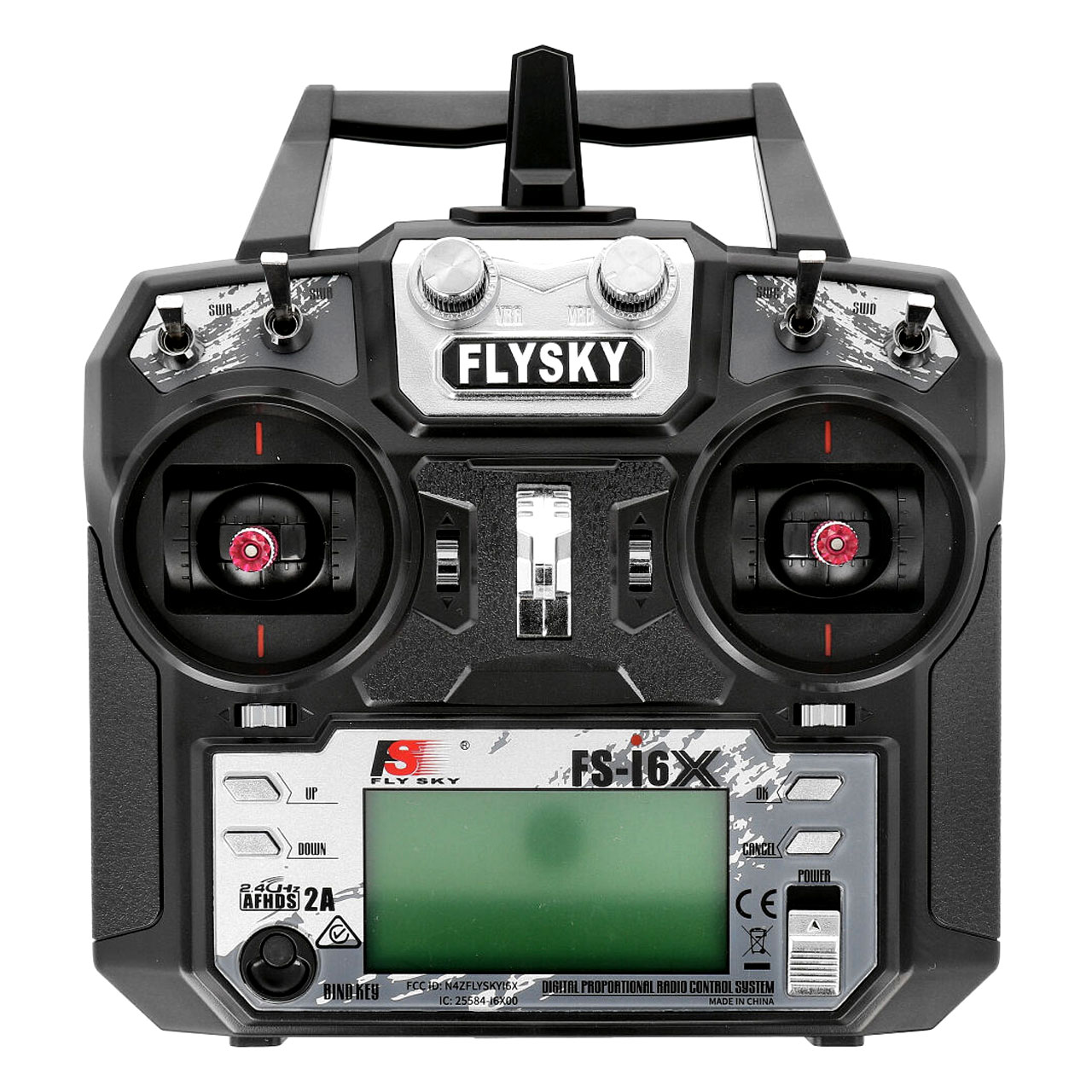

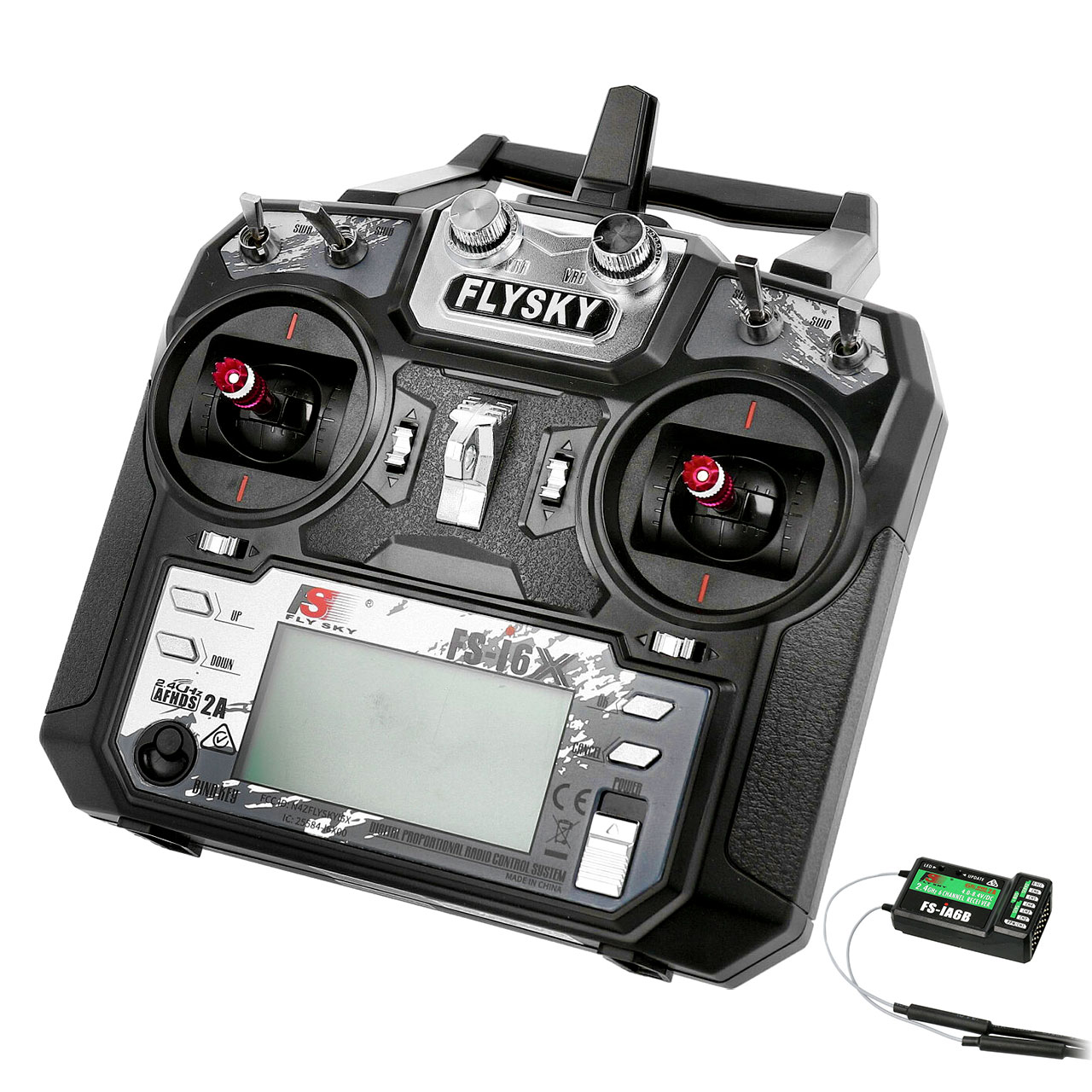

The FS-i6X transmitter is ideal for controlling all fixed-wing aircraft, gliders and helicopter models. Thanks to the AFHDS2A protocol, the transmitter supports up to 10 channels depending on the upgrade and is compatible with many different simulators via the USB port.
Features:
AFHDS2A
Up to 10 channels
LCD 128x64 Dot Matrix
Supports PWM and PPM as well as i-BUS and S.BUS
Compatible with USB Simulator
Technical Specifications:
Transmitter
Type: 2.4GHz
Frequency Protocol: AFHDS 2A
Channels: 6-10 (Standard: 6)
Suited RC Models: Fixed wing, helicopter, glider, boat
Distance: 500 - 1500m (air)
Channel Resolution: 4096

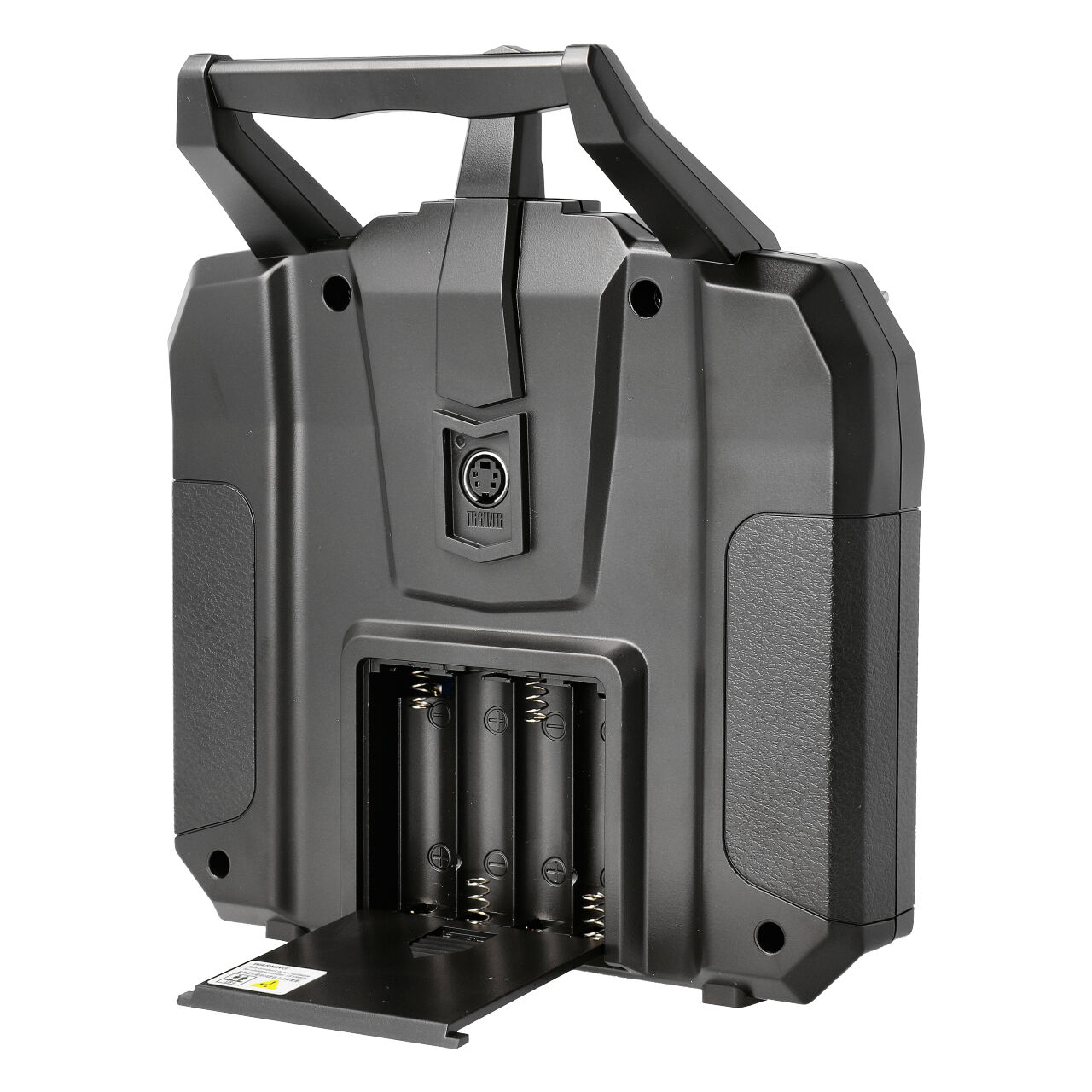

Battery: - 4x 1.5V AA
Low Voltage Warning: < 4.2V
Antenna Type: Dual

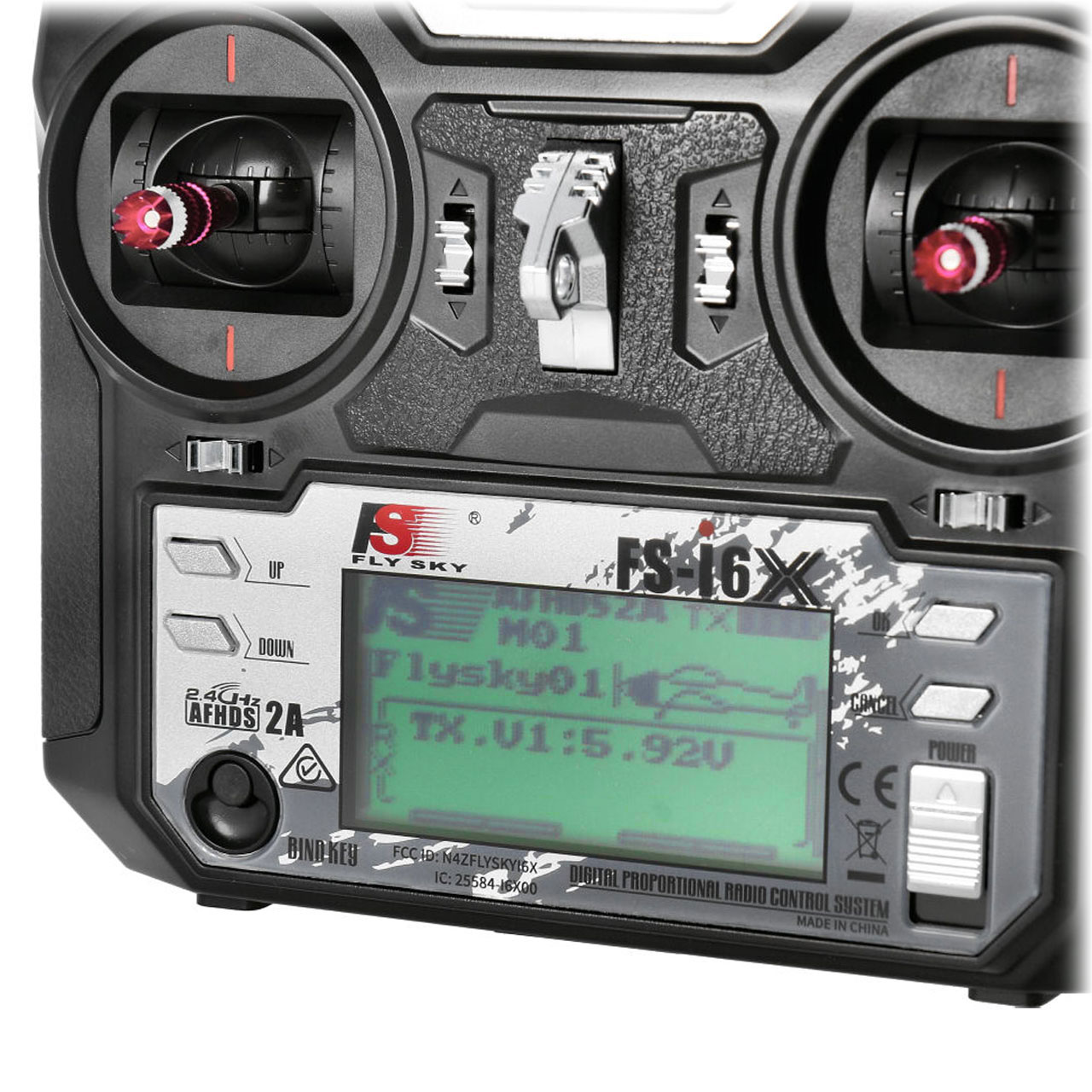

Display: STN transflective display, LCD 128x64px dot matrix
Charging Interface: -
Data Interface: PS / 2 (PPM)
Temperature Range: -10°C up to +60°C
Humidity Range:: 20% up to 95%
Online Update: Yes
Size:
174x89x190mm
Weight: 392g
Receiver FS-IA6B
PWM: 6
Type: 2.4GHz ISM
Frequency Protocol: AFHDS 2A
Suited Transmitter: All radios with AFHDS 2A-support
Antenna Type: Dual (2x 150mm)
Voltage: 4-8.4V
Data Interface: PWM/PPM/i-BUS/S.BUS
RSSI: Ja
Temperature Range: -10°C up to +60°C
Humidity Range: 20% bis 95%
Online Update: Yes
Size: 47x26.2x15mm
Weight: 10g

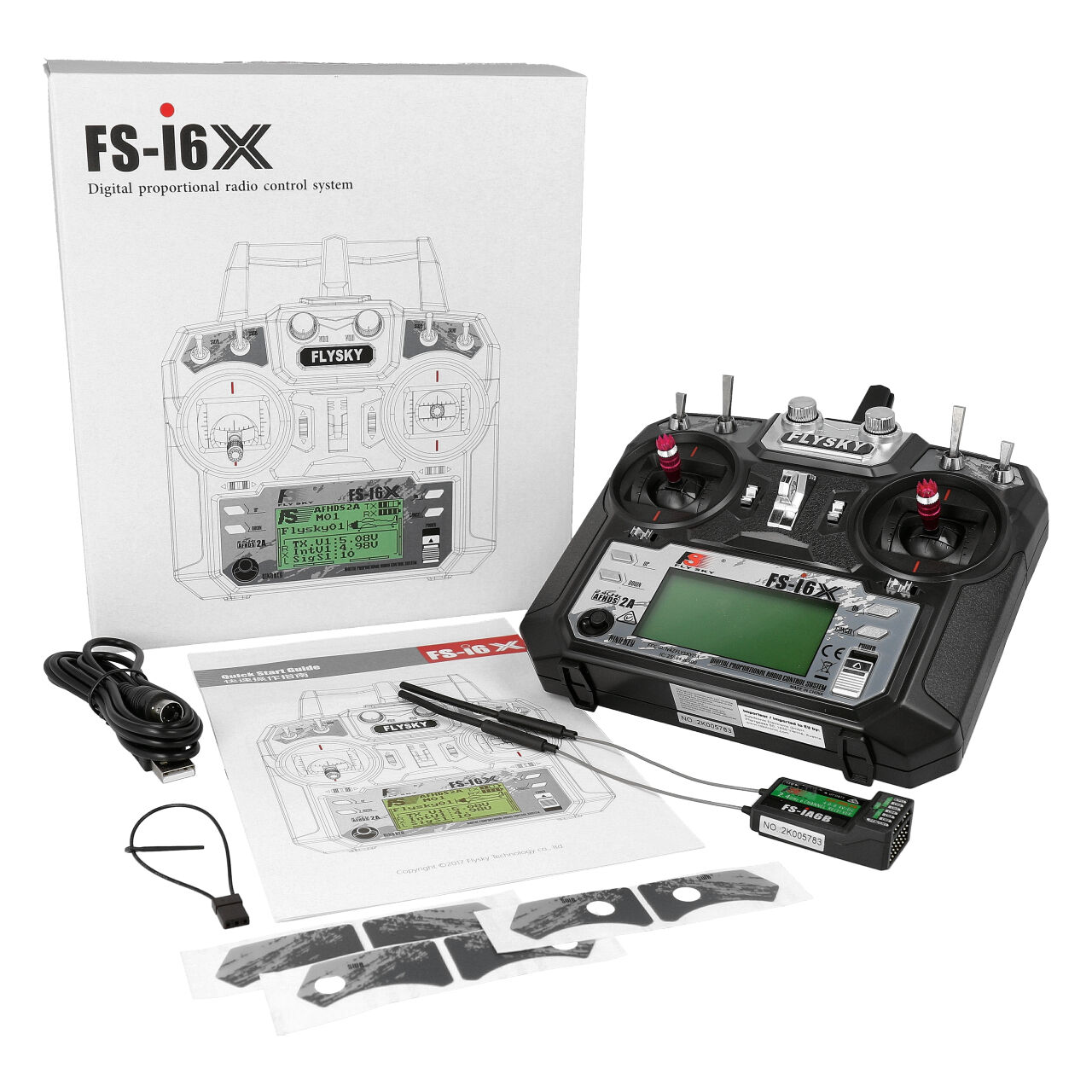

Delivery:
FlySky i6X Transmitter
1x Receiver: FS-IA6B
Manuals
