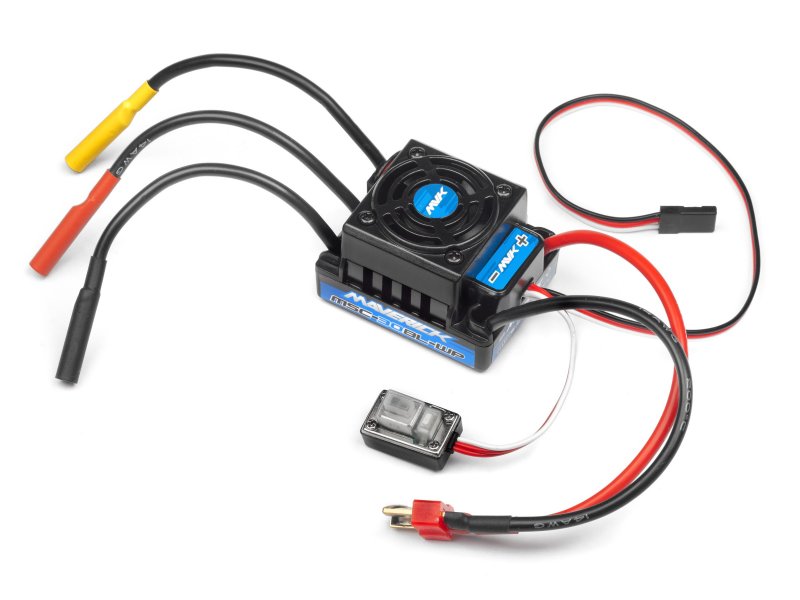

Maverick MV30003 MSC-30BL-WP Brushless speed controller (T-Plug)

Replacement Brushless ESC for the Strada Red series of cars Can also be used to upgrade the standard Strada when used in conjunction with a Brushless Motor: #MV22602 - MM - 22BL 3215KV Brushless Motor MSC-30BL-WP BRUSHLESS SPEED CONTROLLER Features Water-resistant* and dust-proof. The ESC has been designed to work in wet conditions. 2-3S Capable (for 3S you must change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver 5-6V); Compatible with sensorless brushless motor. 2 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode). Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment. 4 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks. Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection /Throttle signal loss protection / Motor blocked protection. Easily programmed with the “SET” button *Please remove the cooling fan when running the ESC very wet conditions. *After running the ESC in wet conditions, please clean and dry it to avoid the oxidation to copper connectors Specification Continuous Current: 45A Burst Current: 220A Resistance: 0.0012 ohm Application: 1/10 scale on-road and off-road Motor Limit: 2S LiPo or 6 cells NiMH - On-road: ≥9T, Off-road: ≥12T, 3650 size motor 3S LiPo or 9 cells NiMH - On-road: ≥12T, Off-road: ≥18T, 3650 size motor Battery: 4-9 Cells NiMH or 2-3S Lipo** Built-in BEC: 6V/2A Program Port: Multiplexed with cooling fan port Motor Type: Sensorless Brushless Dimension: 48.5 x 38 x 32mm Weight (with wires): 90g **1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5V cooling fan on the ESC; **2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5V cooling fan to 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V);
