Kuvaus
Tuotenumero: HW30405405
Application: Drone
Motor Type: Brushless
kV Value: 2850 kV
Motor diameter: 30,8 mm
Motor length: 15,9 mm
Shaft length: 13,5 mm
Shaft Diameter: 5 mm
Weight: 35,5 gram
Max Current Cont.: 25 A
Max voltage: 14,8 V
Power Cont: 420 W
Excellent Product Design
Super thin disc-type structure with a low center of gravity guarantees better control feel.
Concave anti-skid teeth together with the lock-up screw at the bottom effectively prevent rotor
from moving or loosing and strengthens reliability of the motor.
One-piece eight-bladed centrifugal fan greatly reduces the operating temperature of the motor.
Super light weight, only 33.4g.
Super Impact Resistance
High-strength CNC-machined aluminum alloy frame which features the strengthened cross beam structure combined with the high-precision hollow alloy steel shaft going through the entire motor guarantee the super impact resistance of the motor.
Top Quality Components

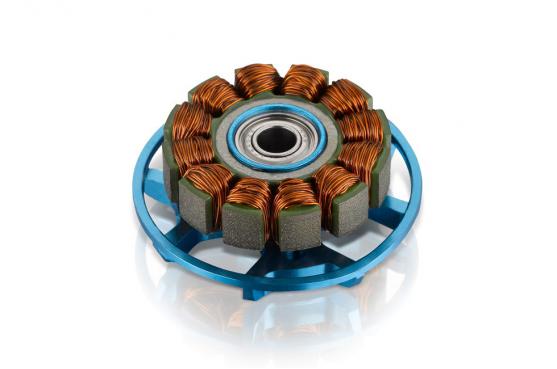

Special 240℃ heat-resistant windings (after vacuum dip coating treatment) can stand high, surge current.
N54 super magnets guarantee high torque output.
Super thin (0.2mm) silicon sheets imported from Japan guarantee low (power) loss, less heat generation but high magnetic permeability.
Dedicated 4mm bearings (the thickness is enlarged by 33% comparing to the regular 3mm bearings on the market) imported from Japan guarantee great load-bearing capacity and impact-resistance.
Super Thrust
The maximum thrust of 1.58KG (*XRotor 2405 2850KV motors+5040 three-bladed propellers, 3S LiPo) combined with the thrust to weight ratio of up to 47.3:1 provide aggressive power for FAV drone(s).
