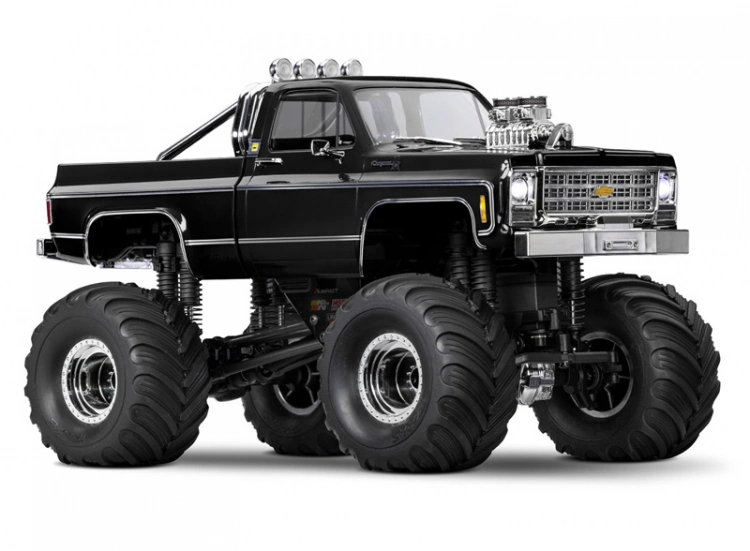

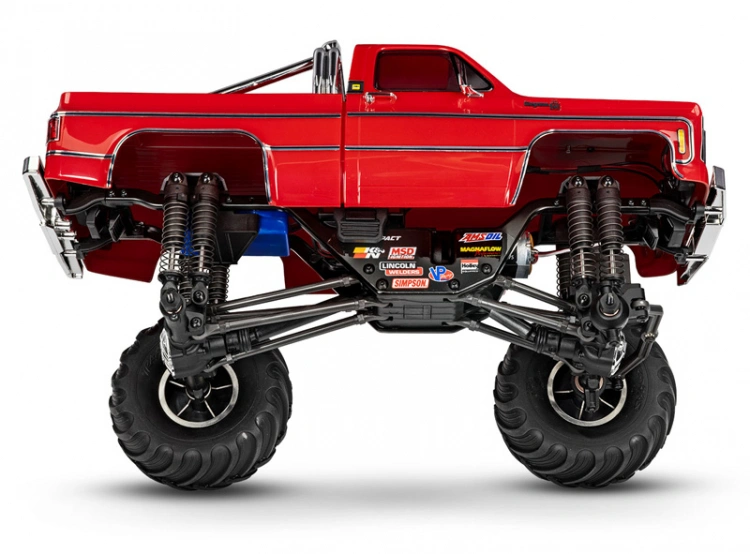

Lifted Performance

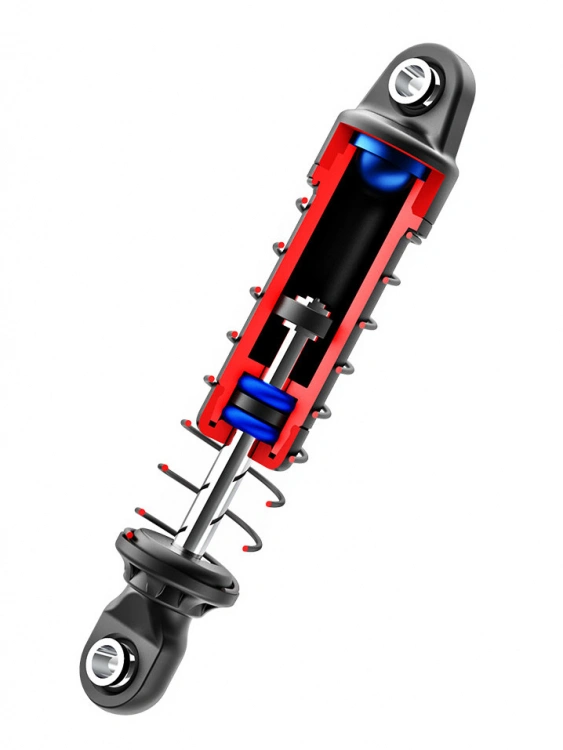

TRX-4MT’s factory Installed Long Arm Lift Kit and large Terra Groove tires raise the center ground clearance 88% for an authentic monster truck stance. Eight individual shocks on revised shock mounts with extended links ensure the truck maintains its carefully tuned suspension geometry for peak performance.

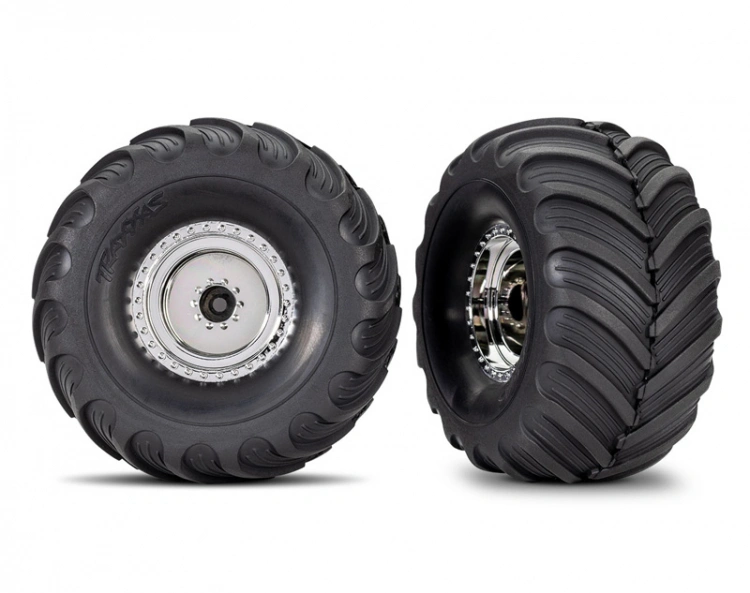

Terra Groove Tires
Huge Terra Groove tires give TRX-4MT the authentic “hand carved” look of full-size monster trucks. Mounted on chrome deep-dish wheels with beadlock trim, Terra Groove tires provide excellent traction with an aggressive tread pattern that bites into loose surfaces. The sticky rubber compound is also great on carpet, grass, and pavement.

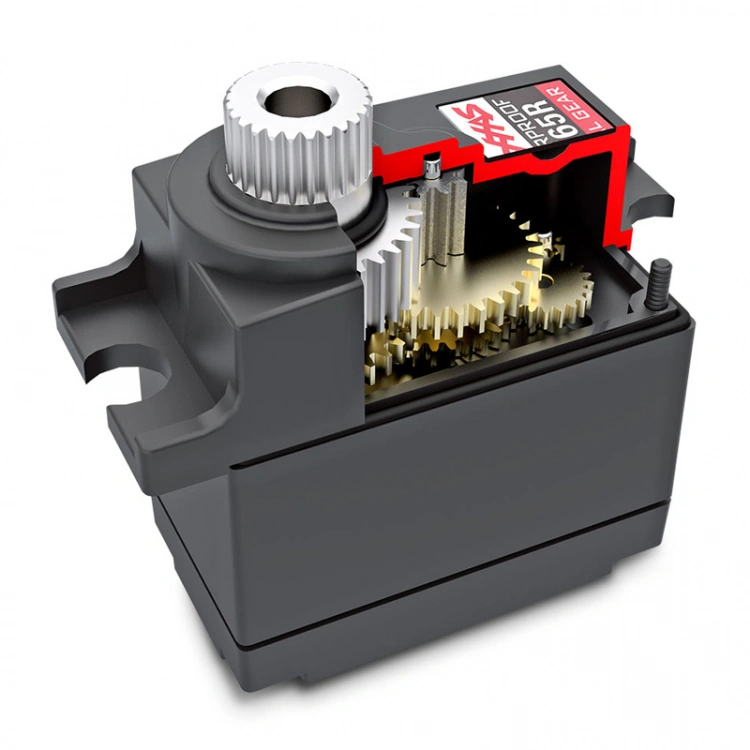

Metal Gear Servo
TRX-4MT comes factory-equipped with the upgraded 2065R servo to turn its oversize Terra Groove monster truck tires with authority. This fully waterproof servo features an all-metal-gear drivetrain for maximum durability under the toughest conditions.

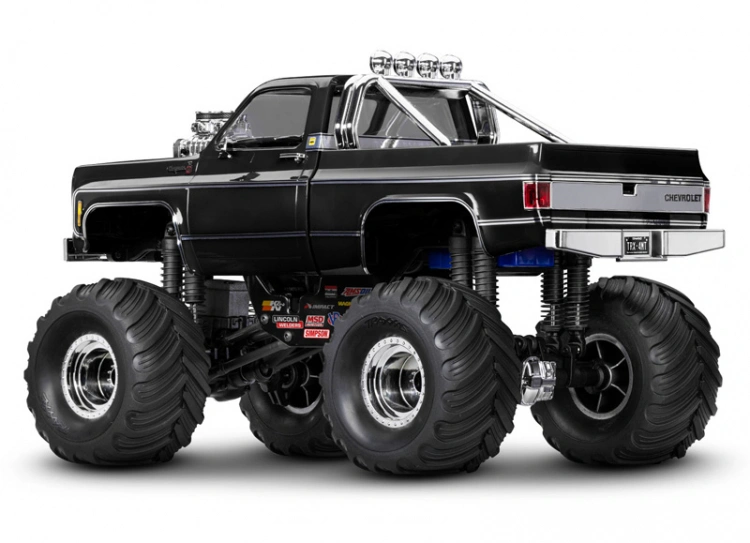

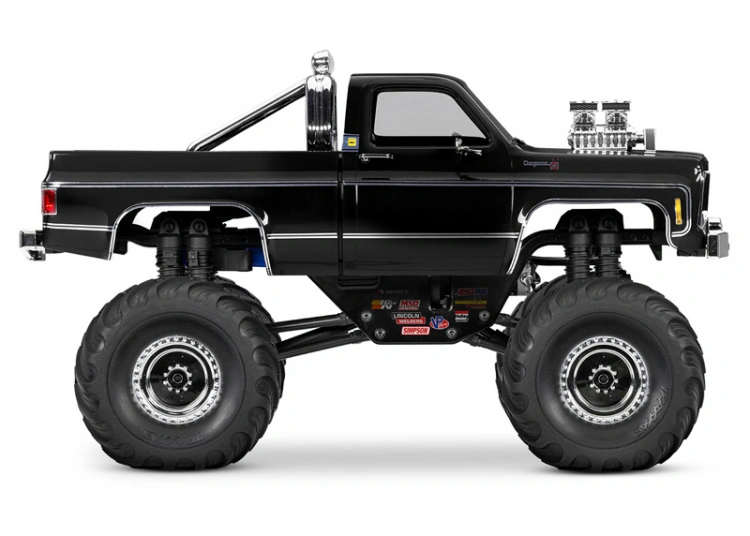

Detailed Clipless Body
The rugged ABS clipless body holds tight over jumps but releases in just seconds with a hidden latching system to preserve its clean lines. Working headlights and beautifully detailed chrome accessories complement TRX-4MT’s high gloss paint for authentic show-stopping looks.
Vehicle Specs:
Length: 276mm
Width: 166mm
Center Ground Clearance: 55mm
Weight (with battery): 577g
Height: 170mm
Wheelbase: 164mm
Approach Angle: 82°
Breakover Angle: 38°
Departure Angle: 67°
Shock Length (front and rear): 51mm
Hex Size: 7mm

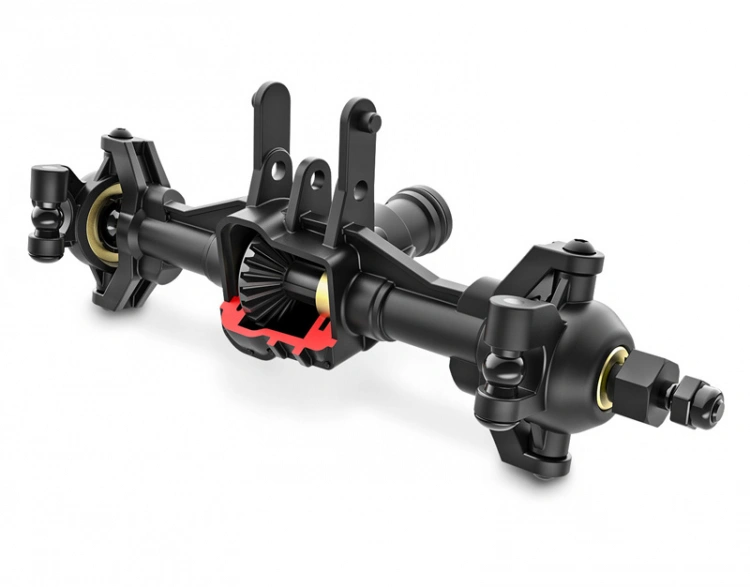

Differential Type: Fully locked; 2:1 axle ratio
Wheels (front and rear): 34x13mm (1.33"x0.49")
Tires (front and rear): 80x42mm
Electronic Control Module: ECM-2.5™ (combo ESC, receiver, lighting control*)
Motor (electric): Titan® 180 87T

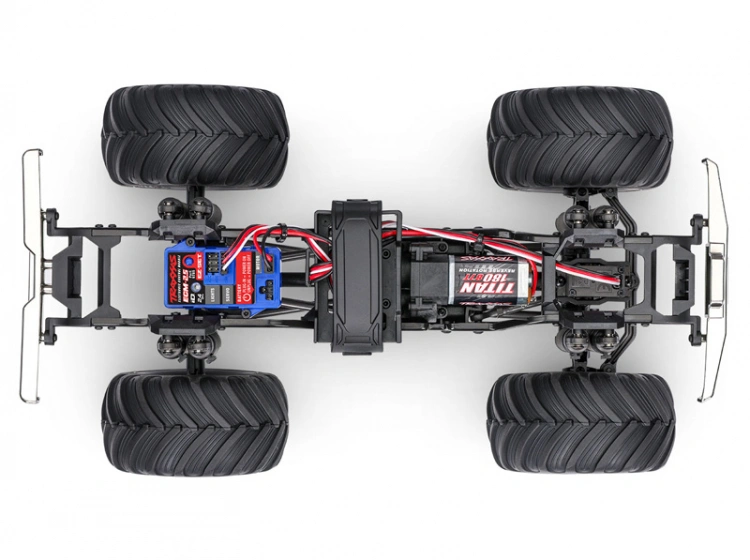

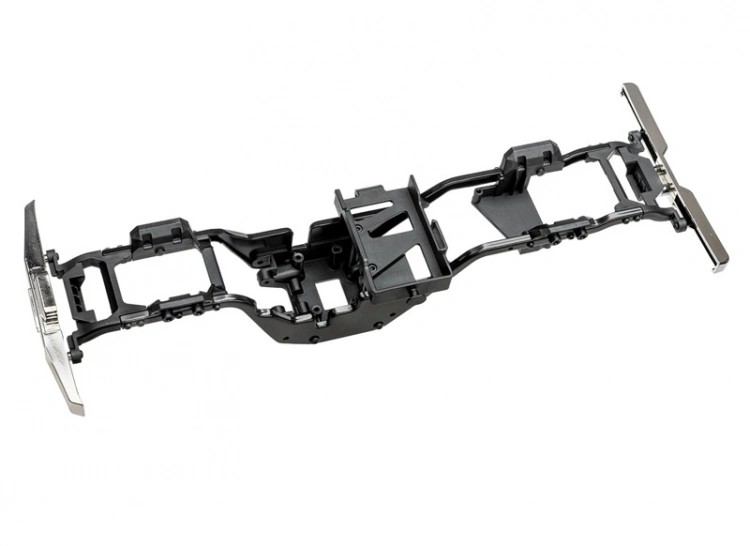

Chassis Structure/Material: Steel ladder frame with Nylon composite crossmembers
Brake Type: Electronic “Hill Hold”

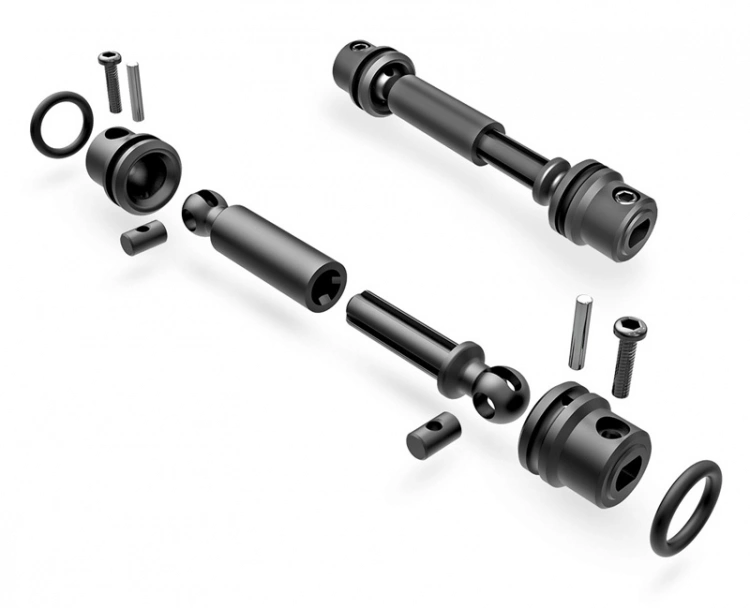

Drive System: Shaft-driven 4WD
Steering: Axle-mounted servo
Radio System: TQ™ 2.4 GHz 2-channel transmitter
Servo: 2065R metal-gear, heavy-duty waterproof
Skill Level: 1
Battery Tray: L51xW31mm
*Requires accessory Pro Scale® LED light kit, sold separately

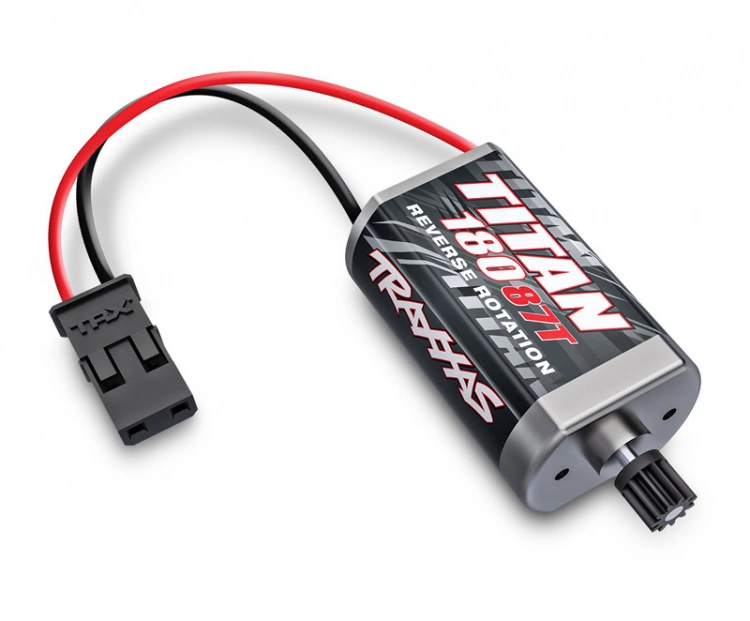

Motor Specs:
Type: High-torque brushed motor
Size: 180
Weight: 33g
Dimensions: 42mm overall length, 34mm can length, 21mm diameter
Turns: 87T reverse rotation
Voltage: 8.4

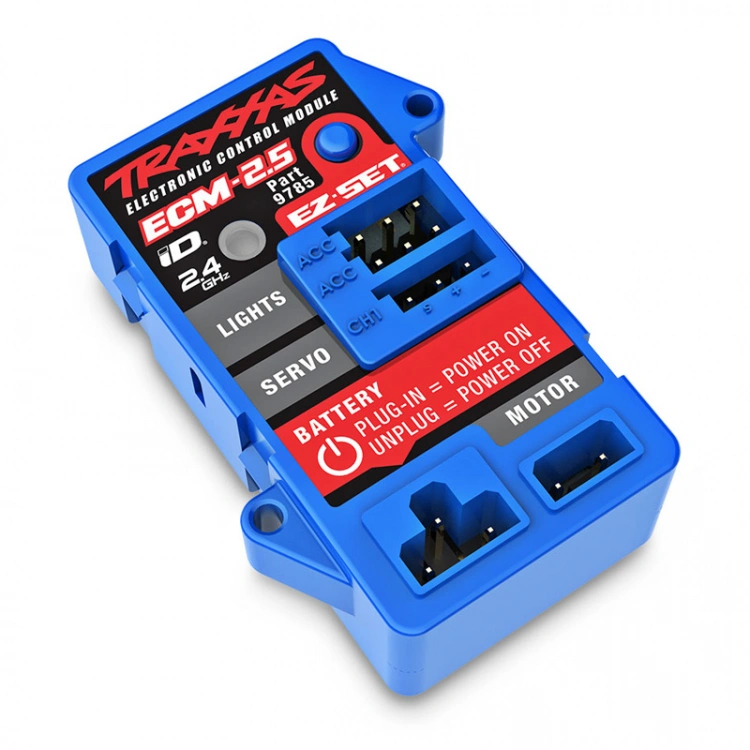

ECM Specs:
Input Voltage: 2s LiPo
Weight: 26g
BEC Voltage: 6.0
BEC Current: 1A
Low Voltage Detection (LVD): 2-stage
Transistor Type: MOSFET
Motor Overload Protection: 2-Stage
Profile Selection:
Sport Mode: 100% FWD, 100% Brakes, 100% REV
Trail Mode: 100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
What’s In The Box:
TRX-4MT Monster Truck
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5 Electronic Control Module
TQ transmitter

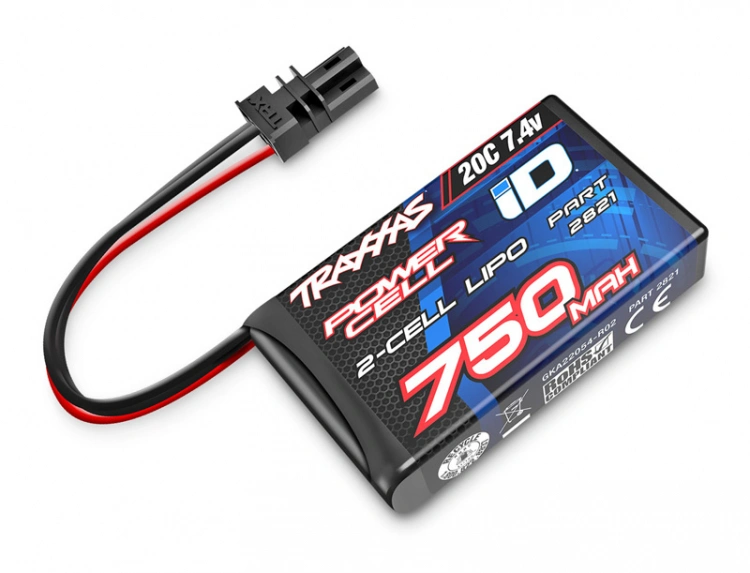

7.4 volt 750 mAh 2-cell LiPo battery

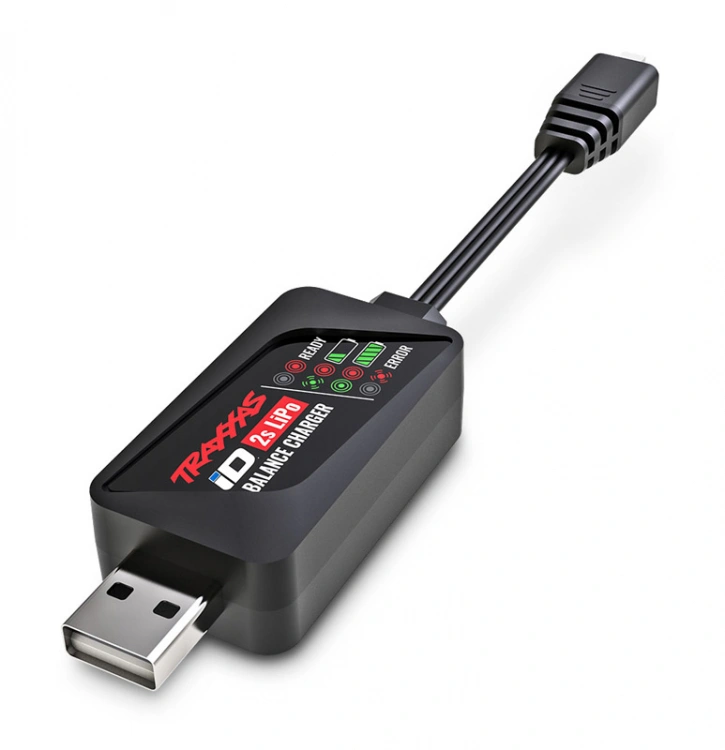

2-amp USB fast charger with iD®
High quality maintenance tools
What You’ll Need:
Four AA alkaline batteries for the transmitter
