Savöx SW-0231MG Servo 15Kg 0,17s Metal Gear WP

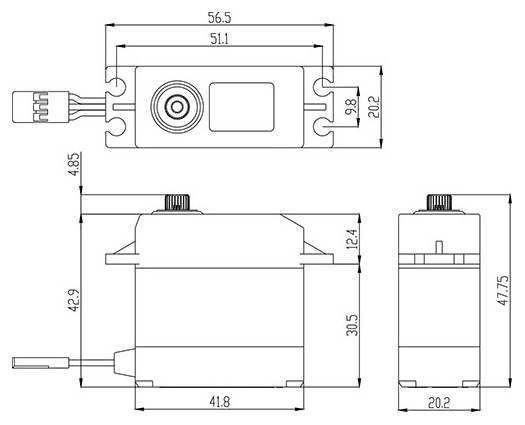

SAVÖX SW-0231MG - Water Proof Metal-Geared Standard-Sized Servo The SW-0231MG is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power. Features: Strong metal gear train for added durability Waterproof case design Ideal for cars, truck, and boats subject to water or snow Slightly taller case design Specifications: Torque @4.8V: 12kg/cm Torque @6V: 15kg/cm Speed @4.8V: 0.20 sec/60 deg Speed @6V: 0.17 sec/60 deg Dimensions L x W x H: 41.8 x 20.2 x 42.9mm Weight: 66g Technical Details: Operating Temperature: -10° to 50°C Running Current (no load): 100mA @4.8V, 120mA @6.0V Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 200 ± 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 240 Hz Motor Type: Brushed
