Specs:
DC Input Voltage: 11-18V
AC Input Voltage: 100-240V
Display Type: 128x64 LCD
Display Backlight: Cool White
Case Material: Plastic
Controls: Five Buttons
Case Size: 153 x 140 x 67 mm
Weight: 668 g
DC Power Supply Output: 13.8V / Max. 100W
PC Communications: USB Port for PC Control & Firmware Upgrade

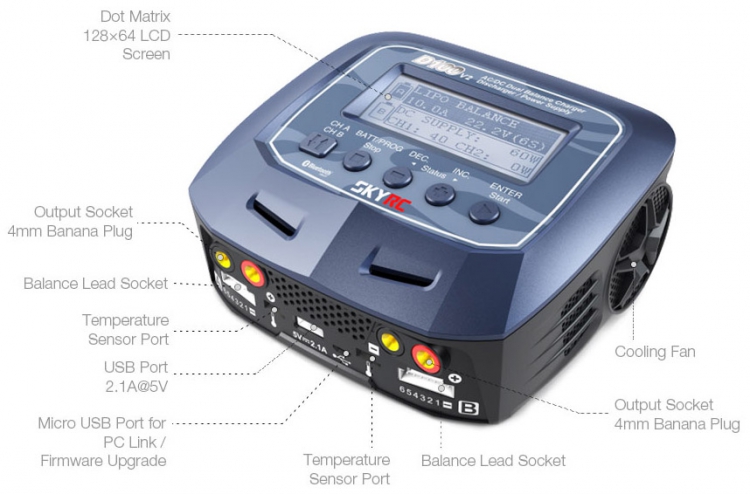

External Port: 2-6S Balance Socket-XH, Temperature Probe Socket, Battery Socket, AC/DC Input, DC Output, Micro USB Port for PC, 5V-2.1A USB Output.
Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
Charge Cut-off Temperature: 20ºC-80ºC (adjustable)
Charge Voltage: NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiIon: 4.08-4.2V/cell
LiFe: 3.58-3.7V/cell
LiHV: 4.25-4.35V/cell
Balance Current: 300mA/cell
Reading Voltage Range: 0.1-26.1V
Battery Types/Cells: LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V
Battery Capacity Range: NiMH/NiCd: 100-50000 mAh
LiPo/LiIon/LiFe/LiHV: 100-50000 mAh
Pb: 100-50000 mAh
Charge Current: 2x 0.1A-10.0A
Safety Timer: 1-720 minutes / OFF
Charge Wattage: AC 100W (Support Power Distribution) DC 2x100W
Discharge Current: 2x 0.1A-2.0A
Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiIon: 2.9-3.2V/cell
LiFe: 2.6-2.9V/cell
LiHV: 3.1-3.4V/cell
Pb: 1.8-2.0V/cell
Discharge Wattage: 2x 10W
Balance Cells: 2-6 cells
Memory: 10x2 Different Charge/Discharge Profiles
Charge Method: CC/CV for Lithium Types and Lead (Pb) Batteries & Delta-peak Sensitivity for NiMH/NiCd.
Included:
SKYRC D100v2 Charger
2x XH Adaptor
2x Charging Cable
2x Banana connectors with XT60 connector Charging Cable
Power Cord
